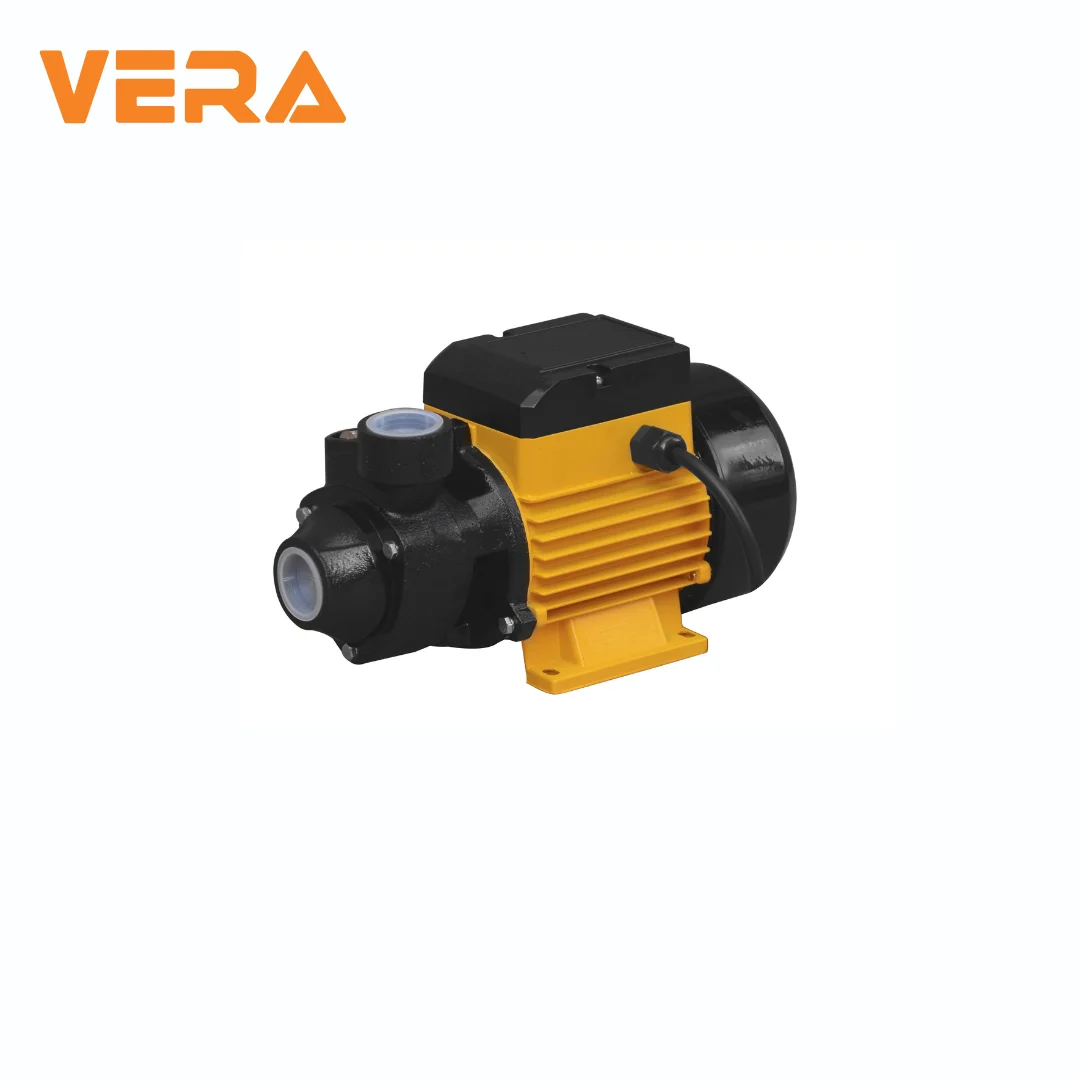

V-M-0.5HP Water Pump

The V-M-0.5HP Water Pump is a high-performance single-phase pump designed for transferring clean water and liquids with similar physical and chemical properties. Built with durable materials and precision engineering, it ensures reliable performance for domestic, agricultural, and industrial applications.

Applications:

Garden irrigation systems
Vegetable greenhouse water supply
Breeding industry water supply and drainage
Various auxiliary and corollary equipment requiring water transfer

Operating Conditions:

Maximum suction lift: 8 m
Maximum fluid temperature: 40 °C
Maximum ambient temperature: 40 °C
Continuous duty operation

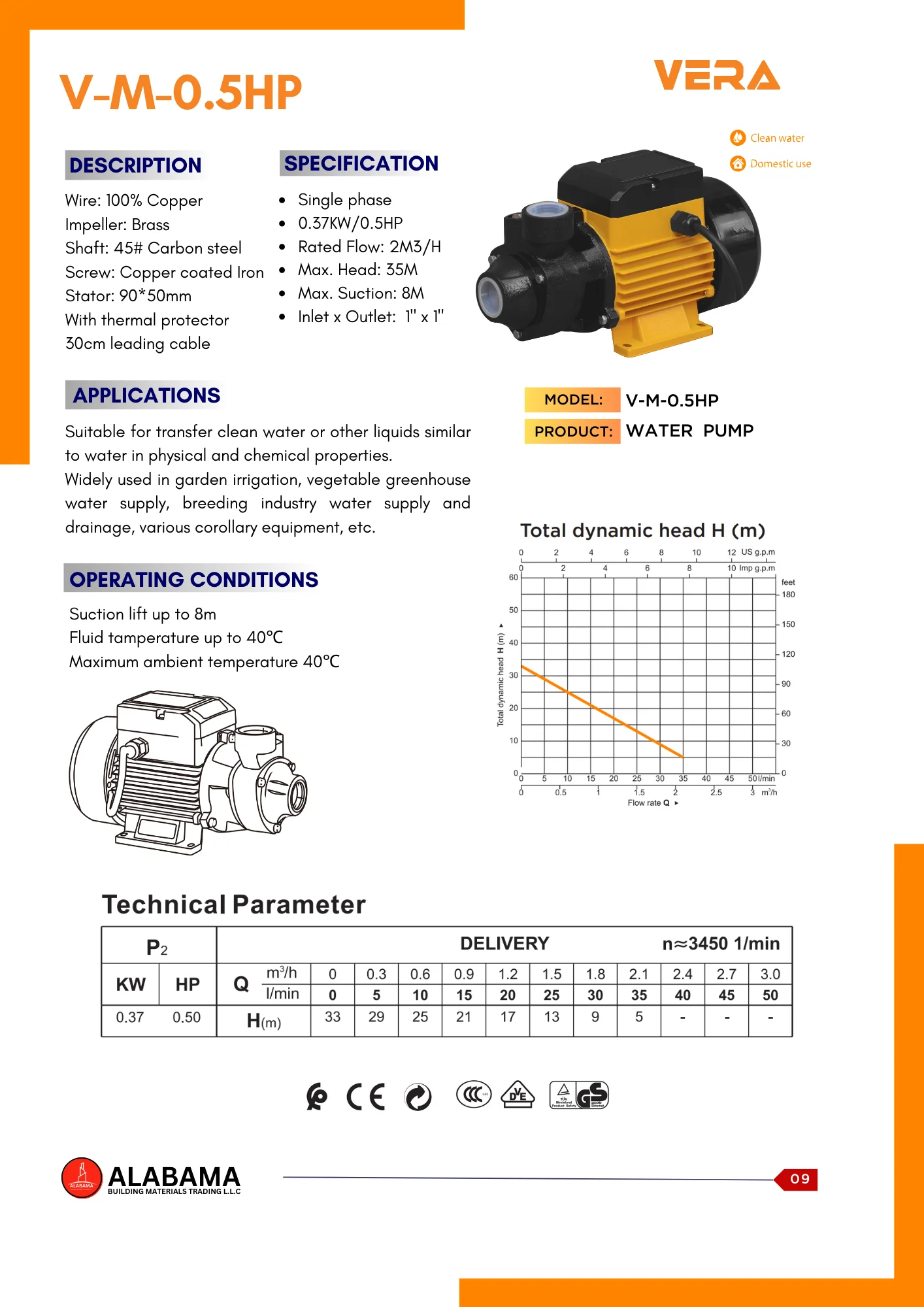

Specifications & Performance:

Model: V-M-0.5HP
Power: 0.37 kW / 0.5 HP
Rated Flow: 2 m³/h
Maximum Head: 35 m
Maximum Suction: 8 m
Inlet/Outlet: 1" x 1"

Key Components & Materials:

Wire: 100% Copper for reliable electrical performance
Impeller: Brass for durability and wear resistance
Shaft: 45# Carbon Steel for strength
Screw: Copper-coated iron with thermal protector for safety
Stator: 90×50 mm
Leading Cable: 30 cm

Description:
The V-M-0.5HP Water Pump is engineered to provide efficient and continuous water transfer for clean water applications. Its brass impeller and carbon steel shaft ensure long-lasting performance, while the thermal-protected motor guarantees safe operation. Compact and reliable, this pump is ideal for irrigation, drainage, and water supply in residential, agricultural, and light industrial settings.
